Horizontal Single Stage Centrifugal Pump

This horizontal single stage centrifugal pump is with 100% copper wire. Each finish is done by ourselves, not simply assembled. It’s good for irrigation and industry use.

Send Inquiry

Chat Now

Description

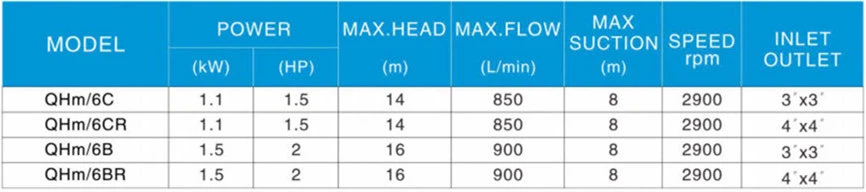

Technical Parameters

product-1200-450

Product description

1	Pump body	Cast iron
2	Impeller	Brass
3	Mechanical seal	Ceramics/Graphite
4	Support	Cast iron
5	Bearing	High quality silicon sheet
6	Rotor	Cold-rolled
7	Motor housing	Aluminum casting
8	End plate	Cast iron
9	Fan	Noryl
10	Fan cover	Steel

The horizontal single stage centrifugal pump is a high-quality water pumping solution that is particularly suitable for irrigation and industrial applications. With high performance and durability.

The motor’s high conductivity and superior heat dissipation properties contribute significantly to the pump's efficiency and reliability, ensuring optimal performance over an extended period.

This single stage pump is built with careful attention to detail, with each finish done in-house, rather than simply being assembled. This approach ensures that every component is precisely crafted to meet stringent quality standards, making it a truly reliable and effective solution for water pumping needs.

In agricultural irrigation, this pump is highly effective, delivering water to fields and crops with ease. Its capacity to handle high flow rates makes it an excellent choice for large-scale irrigation applications.

Similarly, in industrial settings, this pump finds a wide range of applications, including water circulation, cooling systems, and process fluid transfer. It offers dependable performance and efficient water pumping, making it a cost-effective solution for various industries.

Overall, the horizontal centrifugal pump with its 100% copper wire motor, careful craftsmanship, and versatile applications stands out as an excellent choice for irrigation and industrial use. Its durability, reliability, and efficiency make it a valuable investment for those seeking a dependable and long-lasting solution for their water pumping requirements.
